Konica Minolta Software, Firmware, and Hardware Diagnostic Systems

In the modern office technology ecosystem, multi-function peripherals (MFPs) like the Konica Minolta bizhub series have evolved from simple photocopiers into complex network nodes and software platforms. The architecture of these devices is built upon the integration of mechanical components, low-level hardware control software (firmware), and high-level application interfaces (OpenAPI). Maintaining operational continuity requires not only tracking mechanical wear but also diagnosing digital failures across complex network protocols, security certificates, and license management layers. Konica Minolta diagnostic systems use a comprehensive code structure categorized by alphabetic prefixes (such as C, J, L, F) to indicate device health and error types.

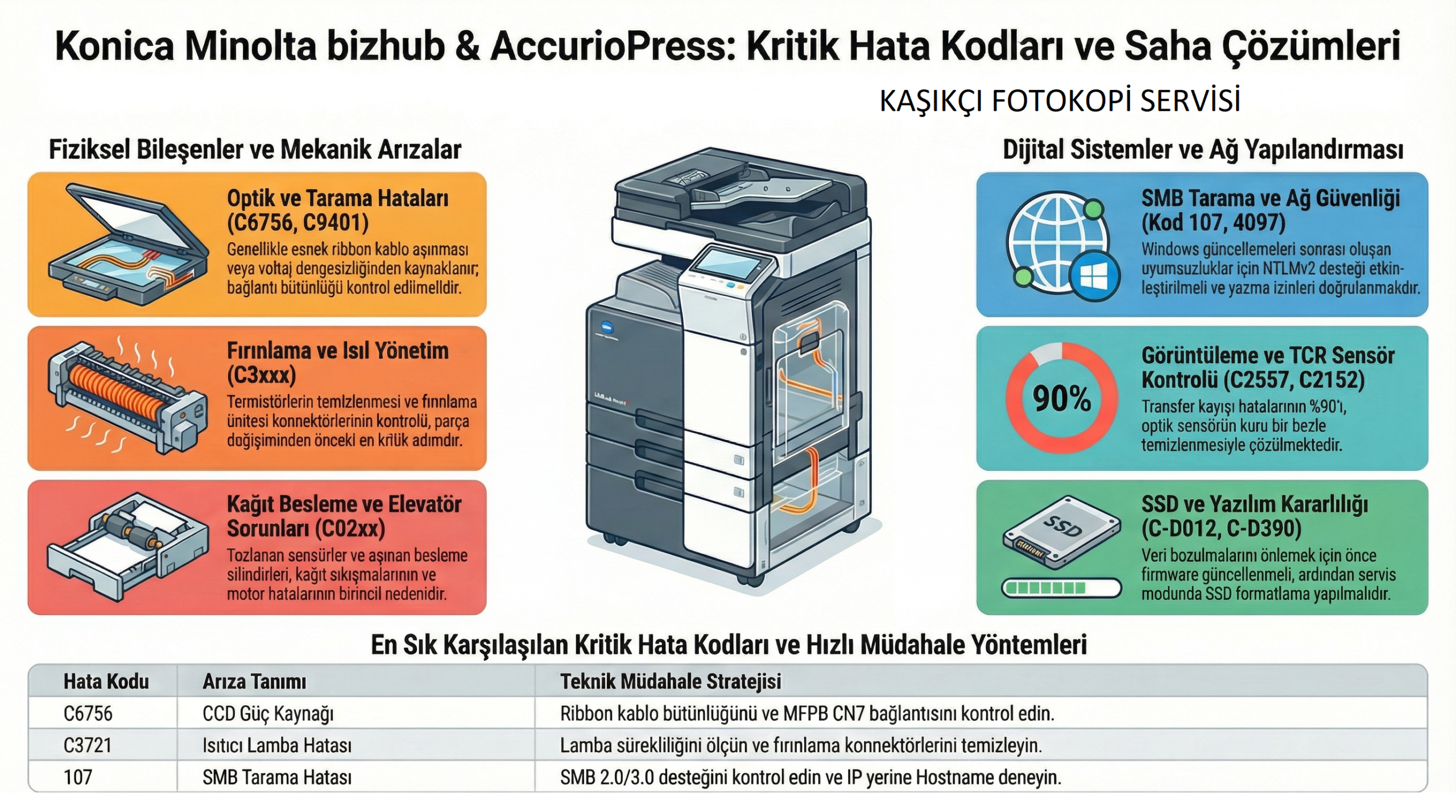

Mechanical and System-Level Fault Codes (C-Codes)

In Konica Minolta diagnostic terminology, codes starting with the “C” prefix are defined as “Service Call” or “Malfunction” codes. These indicate that internal sensors or processing units have detected a mechanical or electronic snag, typically halting operations to protect the device’s safety or output quality. C-codes cover a wide spectrum, from the fusing unit to imaging units and the main control board (MFPB).

Hardware and Sensor Interaction

The root of mechanical error codes often lies in a mismatch between sensor data and timing thresholds defined by the firmware. For instance, during a paper tray lift, the firmware expects the upper limit sensor to activate within a specific millisecond window; if this fails, the machine generates a mechanical error code (e.g., C-0202). Such errors are commonly caused by sensor contamination, motor lockups, or loose cable connections.

The table below details 35 of the most common hardware fault codes discussed in professional service forums:

Code	Subsystem	Description and Technical Diagnosis	Solution Approach
C-0210	LCT System	Large Capacity Tray (LCT) lift failure.	Check tray motor and upper limit sensor.
C-0211	Manual Feed	Bypass tray lift failure (sticky solenoid or clutch).	Solenoid cleaning or clutch replacement.
C-0214	LCT System	LCT shift error.	Verify positioning of paper alignment mechanism.
C-1004	Finisher	Communication loss between finisher and main unit.	Inspect cable connections and sockets.
C-1081	SD Card	SD card communication error.	Check SD card slot and data integrity.
C-1102	Finisher	Main tray up/down movement error.	Inspect mechanical load on tray lift motor.
C-1105	Finisher	Bundle eject motor malfunction.	Encoder wheels often broken in FS-534 units.
C-1106	Staple	Stapler movement unit malfunction.	Movement on the rail might be obstructed.
C-1112	Staple	Stapler motor malfunction.	Check motor rotation resistance and drive board.
C-1196	Folding	Center fold roller malfunction.	Inspect roller sensor and motor torque.
C-1402	Memory	Finisher non-volatile memory error.	Memory reset or board replacement may be needed.
C-2152	Imaging	Transfer belt or drum motor error.	Check drive gears and motor lock.
C-2201	Imaging	Developer unit malfunction.	Rotation may be blocked or sensor is faulty.
C-2557	Toner	Black TCR sensor abnormal low density detection.	Check toner supply system or recalibrate sensor.
C-2558	Toner	Black TCR sensor abnormal high density detection.	Excess toner ratio in the developer unit.
C-255C	Toner	TCR sensor adjustment failure (Black).	Use of non-OEM toner or sensor contamination.
C-2650	Memory	Main backup media access error.	NVRAM or SSD data bus error.
C-2A11	Imaging Unit	Cyan drum unit new release failure.	Chip or fuse on unit not detected.
C-3101	Fusing	Fusing roller separation failure.	Pressure roller separation mechanism failure.
C-3201	Fusing	Fuser motor failure to turn or lockup.	Check motor drive board or fuser gear group.
C-3302	Cooling	Paper cooling fan motor malfunction.	Fan blades dusty or motor end of life.
C-3721	Fusing	Heater lamp failure.	Measure lamp continuity (ohm value).
C-3825	Fusing	Abnormal low temp detection (heating roller).	Thermistor contaminated or lamp weakened.
C-3926	Fusing	Fusing sensor wire break detection.	Check thermistor cable harness.
C-4091	Comm.	Communication error between MFPB and PCRB.	Possible fix via SSD firmware reset tool.
C-4101	Optical	Polygon motor rotation error.	Laser unit polygon motor failure; replacement likely.
C-4501	Optical	Laser malfunction.	Disconnect ADF and perform “Trouble Reset”.
C-4801	Main Board	Main unit board (MFPB) hardware failure.	Inspect board supply voltages and CPU state.
C-4802	Data	Backup data miscompare.	Data mismatch between NVRAM and main board.
C-5102	Drive	Transport motor failure to turn.	Mechanical overload or motor drive failure.
C-5351	Fan	Power supply cooling fan malfunction.	Verify if the fan is physically spinning.
C-5372	Processor	Control board CPU temperature error.	Heatsink contact or fan insufficiency.
C-5601	System	Engine control malfunction.	Firmware or hardware synchronization loss.
C-D390	NVRAM	NVRAM data corrupt or faulty.	Perform “Restore” from SSD.
C-E301	SSD/Board	SSD or MFPB failure (may be software-based).	Often occurs during print job processing.

NVRAM and SSD Data Management

A frequent topic on professional service forums involves managing system errors like C-D390 and C-E301. These relate to corruption in the non-volatile memory (NVRAM). In Konica Minolta architecture, the NVRAM stores serial numbers, meter counts, and settings, while the SSD holds a backup. When a C-D390 error occurs, technicians use a specialized “Reset Tool” to boot the device and then use the “Restore” function to reload clean data from the SSD to the NVRAM. This is a critical software-based intervention attempted before any hardware replacement.

Paper Jam Diagnostics (J-Codes)

“J” prefix “Jam” codes indicate that paper failed to reach or leave a sensor within a specified time rather than a mechanical breakdown. Jam codes are essential for identifying exactly where and at what stage (feed, transport, fusing, exit) the paper is stuck.

Jam Logic and Sensor Tracking

A J-1101 code signifies paper was picked from Tray 1 but failed to reach the pre-registration sensor, often due to worn feed rollers. Conversely, J-3105 indicates paper entered the fuser but failed to exit, frequently occurring when high-humidity paper sticks to the fuser rollers.

The following table lists 20 critical jam codes along the paper path:

Code	Location	Fault Description	Possible Cause
J-1001	Bypass	Bypass tray pick-up failure.	Registration sensor (PS44) didn’t activate.
J-1101	Tray 1	Tray 1 feed failure.	Feed clutch or worn rollers.
J-1102	Tray 1	Tray 1 pre-registration sensor failure.	Paper failed to enter vertical transport.
J-1711	Transport	Paper failed to reach pre-transfer sensor.	Mechanical obstruction in feed section.
J-1714	Exit	Delivery rollers not spinning.	Paper tension or drive issue.
J-3105	Fuser	Paper wrapped around fusing unit.	Contaminated separation claws.
J-3112	Transport	Improper centering.	Misaligned paper guides.
J-3210	Fuser	Paper failed to reach fuser exit sensor.	Paper slip inside the fuser unit.
J-3251	Fuser	Fuser stopped due to overheating.	Fan failure or thermostat error.
J-5101	Cover	Front door open warning/jam.	Faulty cover sensor or latch mechanism.
J-1752	Transport	Loop sensor ON error.	Paper buckling excessively during transport.
J-1901	ADU	Duplex unit cover error.	Vertical transport door not fully closed.
J-7210	ADF	Document feeder pick-up failure.	Contaminated original sensor or dusty rollers.
J-2001	Exit	Main body exit sensor (PS3) failure.	Jam occurred after fuser exit.
J-1301	Tray 3	Tray 3 feed failure (LCT/PF unit).	Feed clutch (CL8) failed to engage.
J-1151	Transport	Vertical sensor active during idling.	Forgotten scrap or sensor failure.
J-1702	Transport	Loop sensor timing error.	Loss of sync between motor speeds.
J-2501	Finisher	Finisher entry sensor failure.	Jam during transfer to finisher.
J-1002	Bypass	Bypass tray stop failure.	Sensor failed to switch “OFF” in time.
J-3211	Fuser	Delivery sensor error.	Sensor flag stuck in exit section.

Network Protocol and Authentication Errors

The behavior of Konica Minolta devices on a network becomes complex during SMB scanning and LDAP directory integration. Microsoft’s default disabling of SMBv1 in Windows 10/11 has led to widespread connection issues for older firmware.

SMB Scanning and Windows Integration

Commonly reported issues on r/sysadmin and r/KonicaMinolta include “Server Connection Error” (Code 107) and “Login Error” (Code 4097). Error 107 usually indicates port 445 (SMB) is blocked or the destination IP is incorrect. Error 4097 signifies an authentication failure—incorrect credentials or lack of “Write” permissions on the shared folder.

Below are 20 common network and transmission error codes:

Code	Protocol	Fault Description	Technical Solution
100	SMB	Device not connected to network.	Check cable and MFP IP configuration.
107	SMB	Failed to connect to server.	Allow port 445 and enable SMBv2/v3.
4096	SMB	Hostname not specified/found.	Use DNS or IP address instead.
4097	SMB	User/Pass error or no write permission.	Set folder permissions to “Full Control”.
4098	SMB	Folder not found.	Verify share path.
4103	SMB	Server capacity full.	Check destination drive space.
16711701	SMB	SMB signature verification error.	Match MFP SMB security settings with server.
11	FTP	Network connection busy.	Concurrent connection limit exceeded.
530	FTP	Incorrect login name or password.	Verify FTP authorization info.
550	FTP	Folder does not exist.	Check FTP root and path compliance.
27	SMTP	File size too large.	Lower resolution or increase server limit.
110	SMTP	Operation timed out.	Check SMTP response time and link speed.
535	SMTP	SMTP authentication error.	Check App Password or SMTP-Auth settings.
452	SMTP	Insufficient server storage.	Recipient mailbox or server disk full.
49	LDAP	LDAP login failed.	Service account or DN path error.
85	LDAP	Connection timed out.	Port 389/636 likely blocked by firewall.
91	LDAP	Unable to connect to server.	Server address or DNS resolution issue.
128	LDAP	DNS failed to resolve server name.	Update DNS server addresses on MFP.
2240	LDAP	Server certificate not trusted.	Load Root CA to “Trusted Certificates”.
3	LDAP	Search time limit exceeded.	Narrow down the Base DN query.

IEEE802.1X Security Errors

In corporate networks, IEEE802.1X requires certificate or user verification upon port connection. Errors here often relate to certificate expiration or “Trusted CA” registration.

Code	Protocol	Fault Description	Insight
6	802.1X	EAP authentication failed.	User ID, password, or certificate faulty.
10	802.1X	Server certificate verification error.	Certificate chain missing or invalid.
19	802.1X	Server certificate expired.	Renew certificate on server side.
30	802.1X	CRL size limit exceeded (1MB).	Revocation list too large; may disable check.
33	802.1X	Certificate storage path not specified.	Define storage in PKI settings.

Software, License, and OpenAPI Platform Faults

Modern Konica Minolta architecture offers advanced functions via “i-Option” (LK-xxx) packs and OpenAPI-based apps like PaperCut. Errors here involve marketing areas, license code mismatches, or WebDAV settings.

License Management Errors (LME)

“License Management Error” messages during feature activation (e.g., LK-102 Searchable PDF) indicate the device cannot reach the License Management Server (LMS) or the code doesn’t match the motherboard serial number.

Below are 24 critical software and license-related codes:

Code / Message	System	Fault Description	Solution Insight
LME-01	License	General license registration error.	Check LMS server access.
LME-03	License	Code and serial number mismatch.	Verify serial via motherboard.
Error 9	OpenAPI	Device locked (DeviceLock).	Another admin or service task in progress.
Error 12	OpenAPI	No permission.	PaperCut admin info doesn’t match MFP.
Error 21	OpenAPI	Can’t use browser.	Enable Web Browser via Utility.
Error 23	OpenAPI	CMS verification error.	Device marketing area mismatch.
Error 29	OpenAPI	CMS MFP setting check error.	Set Switch 43 to “0x03” in service mode.
Error 73	OpenAPI	Unsupported version.	Firmware version incompatible with app.
503	Kofax	Invalid password.	Refresh admin password via DRS.
505	Kofax	Max app limit exceeded.	Delete unused OpenAPI applications.
MAE001	WebDAV	Server connection error.	Enter license code and validate function.
VS_E0001	Virus Scan	Real-time scan error (SMB/Email).	Check antivirus license/updates.
VS_E1006	OpenAPI	OpenAPI app scan failed.	Possible malware risk in app files.
1026	SSO	Certificate expired.	Renew Single Sign-On certificate.
1029	SSO	Invalid signature.	Auth server trust relationship broken.
2049	SSO	Active Directory connection failure.	AD server or service account unreachable.
4097	SSO	Service key not found.	Keytab file or service key missing.
12240	Certificate	Certificate not trusted.	Add certificate to device’s “Trusted” list.
516	SSO	Max registered service limit.	Clean up SSO service list.
520	SSO	Message size range error.	Authentication packet too large.
1032	SSO	Token too old.	Client and server clocks out of sync.
004EFFFF	License	Internal Error.	Rehost license after hardware changes.
002D0006	License	Inconsistent system time.	Check BIOS battery or NTP settings.
00280002	License	Cannot communicate with server.	Sentinel license server access blocked.

Issues Solvable via Remote Support

Konica Minolta’s service strategy emphasizes “Remote Access” technologies to minimize on-site costs. Tools like AIRe Link and Real-time Remote Panel allow for resolving non-physical issues within minutes.

Konica Minolta, bizhub, C-Codes, J-Codes, Service Call, Firmware, NVRAM, SSD Reset, SMB Error, LDAP, OpenAPI, i-Option, Troubleshooting, Remote Support, MFP Diagnostics, Network Scanning, Error 4097, Error 107, C-D390, C-E301, Paper Jam, Fusing Unit, Image Transfer, Laser Unit, Technical Support, Office Technology, IT Infrastructure, Device Management

Remote Solution Scenarios

Analysis shows approximately 80% of support requests relate to configuration or simple adjustments. Experts can access “PageScope Web Connection” or “Panel Link” to perform the following :

1. Network and Scan Configuration: Updating SMB, FTP, and Email server settings and resolving DNS issues.
2. Authentication and Security: LDAP integration, Account Track setup, and SSL certificate installation.
3. Firmware Updates: Remotely upgrading firmware versions for bug fixes and security improvements.
4. Trouble Reset: Remotely clearing software-based lockups (like some C-E301 errors) via service mode commands.
5. License Activation: Enabling i-Option features and fixing LME errors.
6. User Education: Visually demonstrating scan/copy functions via Panel Link Scan.

Situations Requiring On-Site Intervention

While remote diagnostic tools have a 92% success rate in identifying if parts are needed, physical intervention is mandatory for :

• Hardware Failures: Physical damage to the MFPB, fuser, or motors.
• Mechanical Wear: Worn feed rollers, drum units, or developer tanks.
• Power Issues: Device not powering on or electrical fuse failures.
• Damaged Ports: Physically broken network ports or internal cable harnesses.

Conclusion and Strategic Recommendations

The Konica Minolta diagnostic ecosystem is a sensitive structure where hardware and software are deeply intertwined. The 99 error codes and strategies examined in this report rely on three pillars for operational efficiency:

First, Firmware Currency: Most network-based errors (SMB, SSL, OpenAPI) result from incompatibilities with Windows updates. Maintaining current firmware and transitioning to SMBv2/v3 is the permanent solution.

Second, Remote Diagnosis Priority: To optimize costs, remote access methods (Web Connection, AIRe Link) should always be attempted first. Software resets and configuration changes can resolve up to 80% of issues without an on-site visit.

Third, Security and Certificate Management: Minimizing authentication errors (LDAP, 802.1X) requires correct configuration of certificate chains (Trusted CA) and technical limits like the 1MB CRL size. Applying these technical disciplines will improve user satisfaction and reduce the total cost of ownership (TCO).
